| Basic Info |
Model: Panasonic Lumix DMC‑LC1
Announced: February 13, 2004
Type: Compact Camera with Manual Controls
Manual Control: Program, Aperture Priority, Shutter Priority, Manual (A/S/M modes), Program Shift |
| Sensor & Processor |
Sensor Type: 2/3" CCD (8.8 × 6.6 mm), Primary Color Filter
Total Pixels: 5.24 MP
Effective Pixels: 5.0 MP
Max Resolution: 2560 × 1920 (4:3)
Other Resolutions: 2048 × 1536, 1600 × 1200, 1280 × 960, 640 × 480
Aspect Ratio: 4:3
Image Processor: Venus Engine
Image Stabilization: None |
| Lens |

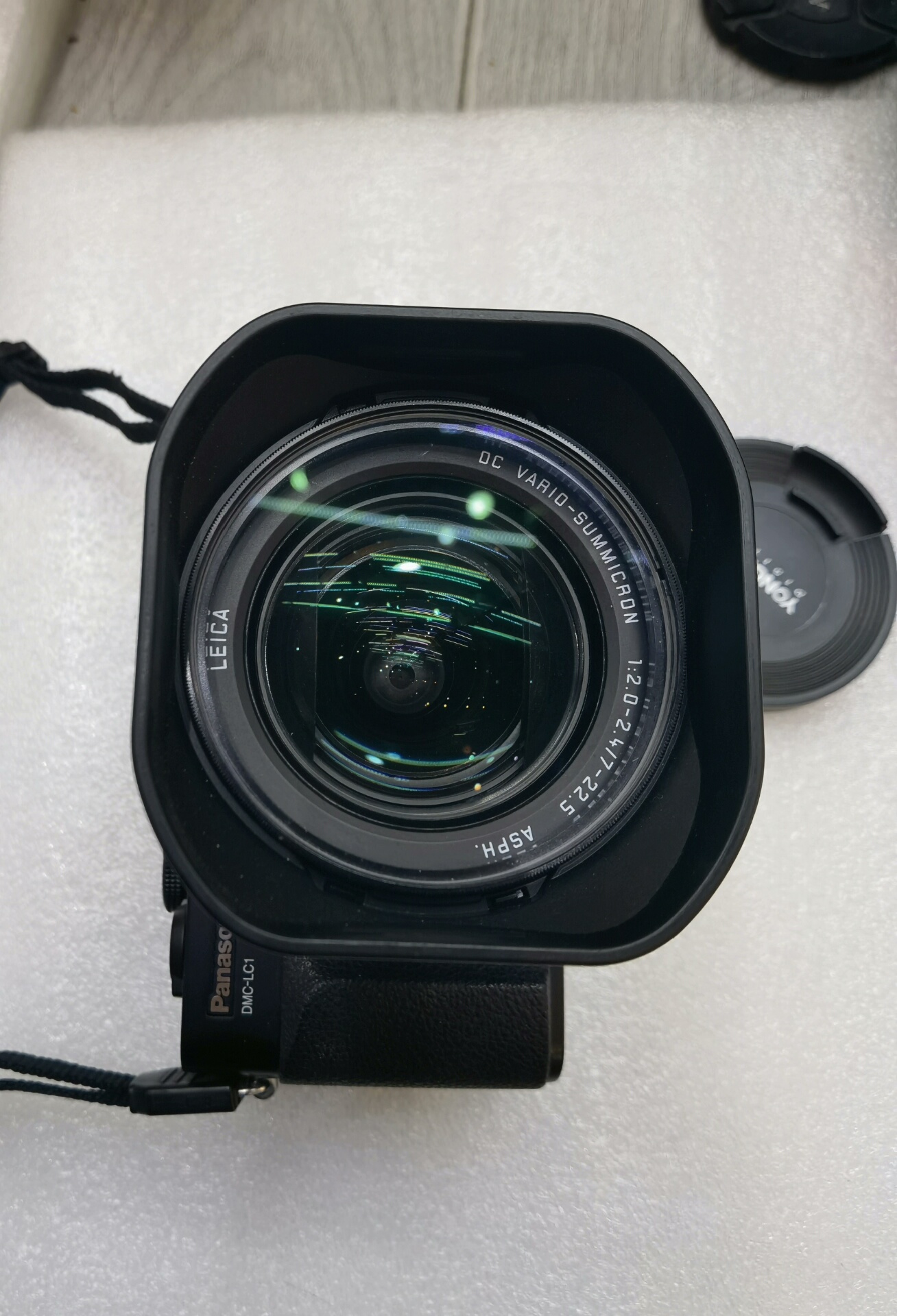

Lens Brand: LEICA DC VARIO‑SUMMICRON
Focal Length (35mm equiv): 28–90mm (3.2x optical zoom)
Actual Focal Length: 7–22.5mm
Max Aperture: f/2.0 (wide) – f/2.4 (tele)
Lens Construction: 10 groups / 13 elements (2 double‑sided aspherical lenses)
Aperture Range: f/2.0 – f/11
Digital Zoom: 2x / 3x (selectable via menu)
Normal Focus Range: 60cm – ∞ (wide/tele)
Macro Focus: 30cm – ∞ (MF/AF Macro) |
| Focus & Exposure |
Focus Type: TTL phase‑detect + contrast‑detect AF, Spot AF, AF/MF Switchable, Manual
Focus Modes: Single, Continuous
Exposure Modes: Program, Aperture Priority, Shutter Priority, Manual, Program Shift
Shutter Speed: 8 sec – 1/4000 sec
Exposure Compensation: ±2 EV (1/3 EV steps)
ISO Range: Auto, 100, 200, 400
Metering: Matrix, Center‑weighted, Spot
White Balance: Auto, Daylight, Cloudy, Tungsten, Flash, Custom, WB Adjustment (±5 steps) |
| Shooting Features |
Continuous Shooting: Up to 2.7 fps (max 9 shots Standard, 5 Fine, 3 Super Fine)
Self‑Timer: 2 sec, 10 sec
RAW Support: No
Face Detection: No
Orientation Sensor: No
GPS: No
Wi‑Fi: No |
| Flash |
Built‑in Flash: Yes (pop‑up)
Flash Modes: Auto, Auto Red‑Eye, On, Red‑Eye On, Red‑Eye Slow Sync, Slow Sync 1/2, Off
External Flash: Yes (Hot Shoe)
Flash Range: Approx. 4.0m (ISO Auto) |
| Display |
Screen Type: 2.5" TFT LCD (Tilting)
Resolution: 211,000 dots
Coverage: ~100% field of view
Electronic Viewfinder (EVF): No
Optical Viewfinder: Yes (Real‑image optical)
Live View: Yes |
| Video |
Video Format: Motion JPEG
Max Resolution: 320 × 240 (30 fps, 10 fps), unlimited recording (with audio)
Microphone: Mono
Speaker: Mono
Dedicated Video Button: No |
| Storage |
Internal Memory: 16 MB
Card Slot: SD, MMC
File Format: JPEG, Motion JPEG
Direct Print: PictBridge, DPOF |
| Connectivity |
USB: USB 2.0
AV Output: Composite (NTSC/PAL)
HDMI: No
Remote Control: Wired (optional) |
| Power |
Battery: DMW‑BCF10 Li‑ion rechargeable (3.6V, 1400mAh)
Battery Life (CIPA): Approx. 300 shots per charge
USB Charging: No
AC Adapter: Optional (DMW‑AC3) |
| Physical |
Dimensions (W×H×D): 135 × 82 × 103 mm (5.31 × 3.23 × 4.06 in)
Weight (body only): Approx. 627 g
Weight (w/ battery & card): Approx. 705 g
Colors: Black
Body Sealing: No (not weather‑sealed) |
